...while the little bits have rattled around inside causing all the visible chipping.

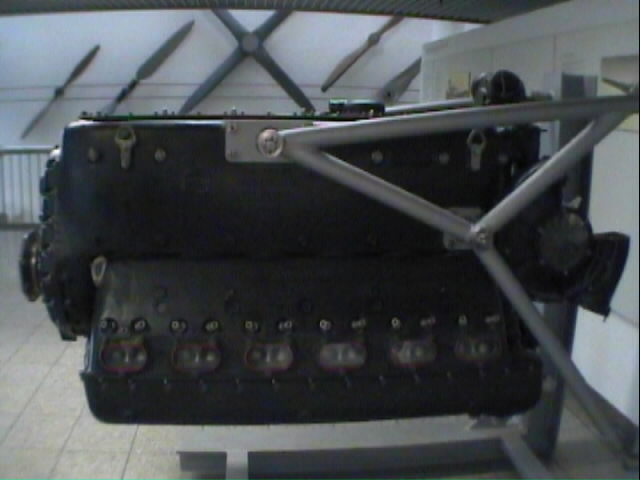

The DB 601 went on to power the most fearsome of the Luftwaffes recon & fighter aircraft in the enlarged 603 & 605 formats.

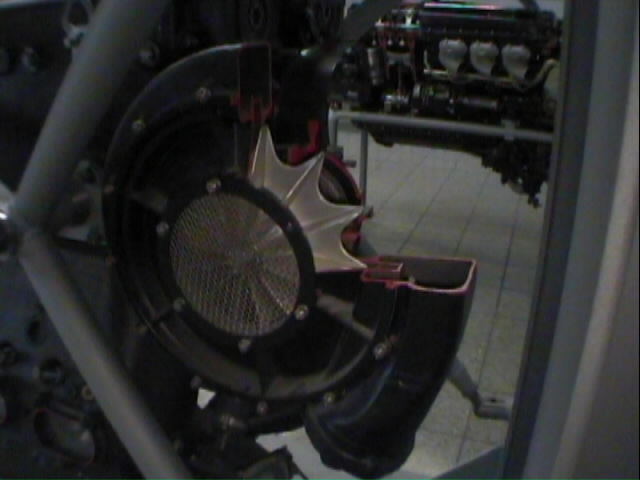

A cut away of the variable speed supercharger. By contrast the Merlin engine only had a two speed supercharger.

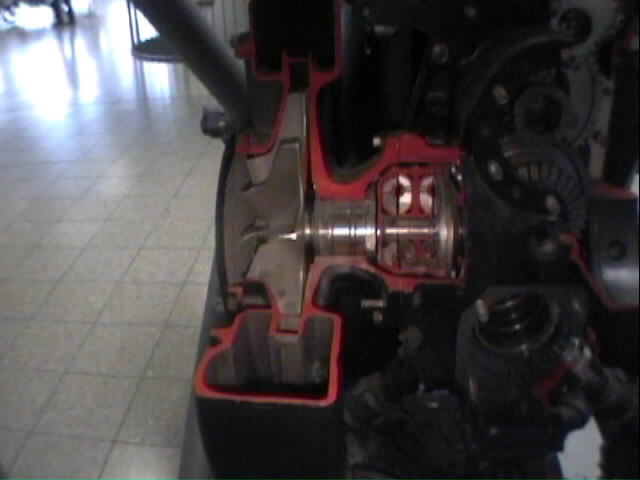

Between the gearing & the supercharger can be seen the variable drive mechanism.

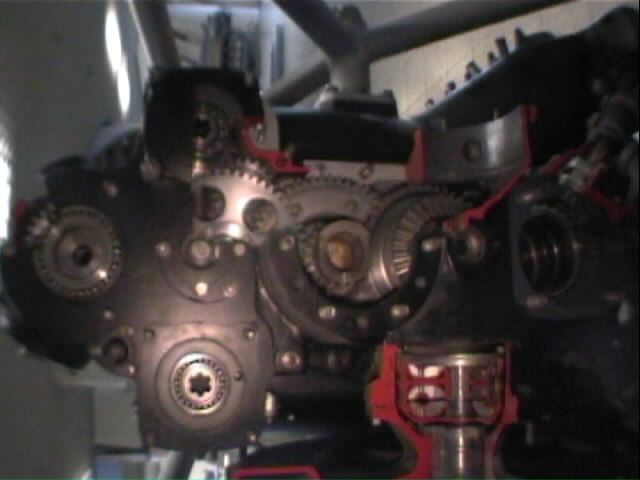

The beautifully engineered gear train at the rear of the engine.
