BACK NEXTAero Engines at the Deutsches Museum








Junker Jumo 213 A. The ultimate level of German piston aeroengine development. This liquid cooled inverted V12 sports direct fuel injection and a two stage automatic supercharger with water/methanol injection, twin overhead cams & 4 valves per cylinder.




A pair of Focke Wulfs utilising the Jumo 213 A.

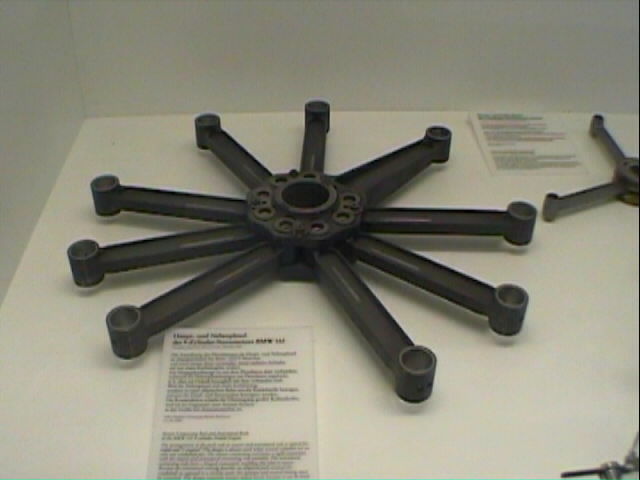

Some interesting con-rod arrangements.
